CONSOLE
Measures 192 x 105 x 32mm. Mobile / tablet support included. LCD measures 71x66 mm with backlight. Waterproof. Easy to understand interface through bar graph. measure the speed, cadence (RPM), calorie consumption, time, distance and WATT. 12 preset programs, Bluetooth 4.0 connectivity and heart rate measurement via bluetooth heart rate monitor.
FLYWHEEL
Rear equivalent to 22 Kg in chromed steel.
FACTOR Q
170mm / 6.69 inches
PROTECTORS
Full side and rear flywheel fairing made of 3mm ABS, which prevents rust and corrosion in metal and electrical parts produced by sweat.
PEDALS
Mixed SPD Dual use, perfect for use with cycling shoes with cleats and normal sneakers.
HANDLEBAR
Made of 3mm steel covered with a layer of foam porous, facilitating grip and allowing easy cleaning. Ergonomic multi-grip triathlon handlebar, open exterior, central closed and low cycling. With push buttons to facilitate the handling of the console and the change of resistance. RGB LED lights to indicate the intensity level of the exercise.

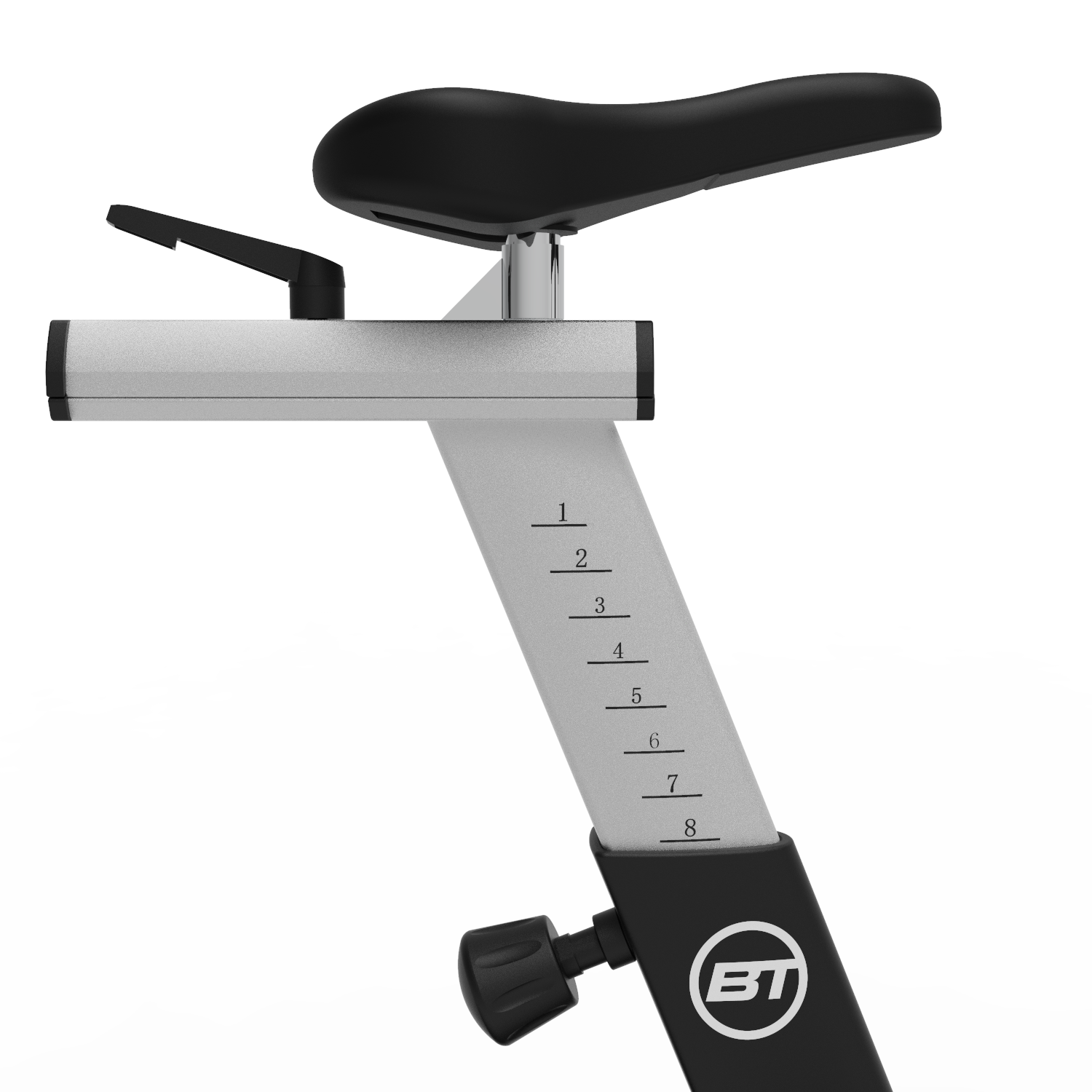

SADDLE
Special EVA padded base for cycle practice indoor. Covered in imitation leather. Exclusive Bodytone design antiprostatic in the pelvic area, offering extra comfort.
BOTTOM BRACKET
Special design, extra thick 28mm and ribbed. bearings NTN 47mmx12mm, with triple bearing system, double on the right side. This double bearing reinforces our bottom bracket to avoid twisting and deformation.
FLYWHEEL SHAFT
Special design, extra thick 20mm and ribbed. NTN 35mmx11mm bearings, with triple bearing system, double on the right side. This double bearing reinforces our bottom bracket to avoid twisting and deformation.
INTENSITY REGULATION
Magnetic intensity regulation, with motorized regulation of 32 positions.
SECURITY
Emergency brake by lever. Friction shoe.
STRUCTURE
3mm thick steel tube, welded by process robotized
INTEGRATED TRANSPORT WHEELS
Yes, to facilitate the transport or cleaning of the machine.
LEVELERS
4 height levelers facilitating stability.
PAINTING PROCESS
3 coats of paint. Pickled and stabilized steel by total immersion of the parts in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. primer antioxidant to ensure proper isolation of the internal oxidation and good paint adhesion. 2 layers epoxy polyester powder paint finishes, drying at 240ºC.
DESIGN PROCESS
Study of biomechanics and ergonomics under the supervision of professional and associated athletes. After a long design period; from sketch, engineering research, production of prototypes, testing by our professional athletes products go on the market
SMB1 V3 CONNECTIVITY
The built-in console on this bike implements the technology Bluetooth 4.0 that allows you to connect with Android and iOS devices and send real-time exercise session data to apps como Zwift, Bkool, Mybodytone, Kinomap, entre otras. It also allows you to link Bluetooth heart rate monitors of the Polar brand and compatible with bluetooth 4.0.
The bicycle connected to cycling simulator apps such as ZWIFT O Bcool can automatically adjust the resistance based on the selected path, you can also modify the resistance manually. manual using the buttons and have full control of the exercise.
